Features

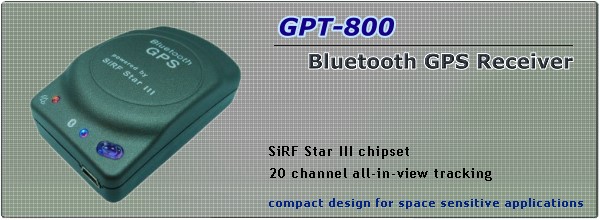

GPT-800 Bluetooth GPS Receiver

  • SiRF Star III chipset

  • 20 channel all-in-view tracking

  • Very high sensitivity: -159 dBm

  • Extremely fast TTFF (time to first fix)

  • GPS and Bluetooth two in one receiver

  • Rechargeable and removable Li-ion battery

  • Embedded Bluetooth module for wireless connection

  • Compact size suitable for space sensitive applications

  • Superior sensitivity for urban canyon & foliage environment

  • With LED indictors for GPS, Battery and Bluetooth status

  • Built-in low noise high sensitivity active patch antenna

  • Dimensions:41mm (W) * 69mm (L) * 22mm (H)

  • Weight: Less than 55 grams (with battery)



Specifications


General
Accuracy
GPS Chip SIRF Star III Position 10 meters, 2D RMS
5 meters, 2D RMS, WAAS enabled
Frequency L1, 1575.42Mhz Velocity 0.1meter/ second without S/A
C/A Code 1.023Mhz chip rate Time 100ns synchronized to GPS time
Channels 20 channel all-in-view tracking Datum WGS-84
built-in low noise patch antenna Sensitivity -159 dBm tracking
  Data Rate 38400 bps
Acquisition Rate
Dynamic Conditions
Cold Start 42 seconds (average, open sky) Altitude 18,000 meters (60,000 feet) max.
Warm Start 38 seconds (average, open sky) Velocity 515 meters/ second (1000 knots) max.
Hot Start 1 second (average, open sky) Acceleration Less than 4G
Reacquisition 100ms, average Motion Jerk 20 m/sec, max.
Power
Interface
Battery Rechargeable and removable
Li-ion battery with 5V DC input
Connection Communicate with host platform
via Bluetooth serial port profile
Operation Time 10 hours after fully recharged Protocol NMEA-0183 - GGA, GSA, GSV, RMC, VTG
Op. Temperature -20 to 70 degree celsius Baud Rate 38400 bps (data bit: 8, stop bit: 1)
Power Jack Mini USB Type B Packing 20pcs/ carton/ 9.50kgs/ 1.70cuft.



Gift Box
