Features

AVL-900 Real-Time Mini GPS Vehicle Tracker

[Hardware]

  • High sensitivity GPS: -159 dBm

  • German Quad band (850/900/1800/1900 MHz) GSM, SMS & GPRS

  • Sound monitoring & track your vehicle asset all the time

  • Geo-fence for car's security & management

  • Report car's position at the preset time interval

  • Compact size, metal housing for harsh environment

  • Good for both DIY and call center based tracking

[GooLocate]

A multifunctional PC base tracking software for you to set up a Fleet Management System at your office or home for tracking over Maps from 1~500 vehicles.


Functions

  • GPS Data Logger Function new

When GSM Network is not available, the GPS data will be stored in the memory upto 17500 records. Once the device receives GSM signal again, the logged data will be sent back to server automatically.

  • Support Two Fixed IP Addresses -only available from GoPass

Through GPRS sending GPS data to 2 fixed IP addresses networked by computers.

  • GEO-fence (Park) Function - guarding vehicle against theft

The tracker will alert you by sending a SMS message to your mobile/PDA, when someone moves the car or the asset without permission over a preset distance. It is recommended to set the geo-fence range over 200 meters.

  • GPS Position Tracking Function

The report method can be via SMS messages or via GPRS.

  • Sound Monitoring Function

You can monitor the situation inside the vehicle remotely from mobile phone by sending a SMS command to this device without interfering the persons in the car.



  • Other Functions:

    • Send back data based on the preset time internal or based on the driving distance

    • Read the volt data by sending a SMS message

    • Get position data thru phone call

    • Set the timetable to send back data automatically

    • Support Sleep Mode

    • If the speed is slower than defined km/ hour for continuous defined time, the device won't send back data

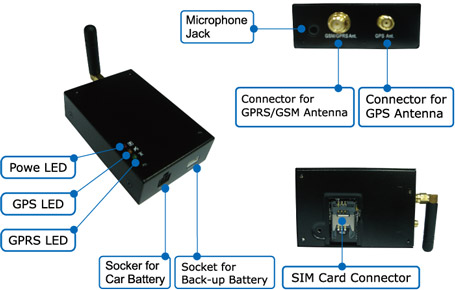

Panel Description

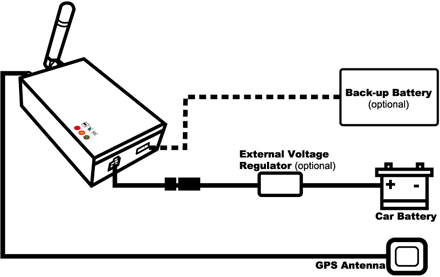

Power Charging

GooLocate

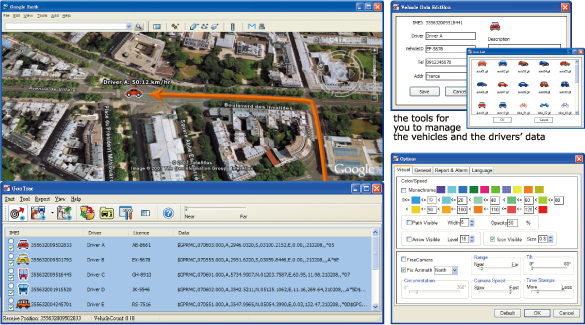

A tracking software for you to track over Maps real-time by your own PC; no need to pay for the maps or service charges. It can also keep history records for you to replay afterwards. As to reports, it can provide you mileage/ routes/ idle/ over-speed/ detailed activity and fleet summary reports for management purpose. Besides, GooLocate software supports "Remote Data Server" function. The data received by server can be forwarded to any PC links to the internet for data sharing. It enables you to set up a mini-control center by yourself.   >>Learn More

　

Other free tracking softwares included

 real-time track over
 navigation map in PC
  track the position by
  mobile phone
  track the position by
  PDA phone

Applications

　

Specifications

AVL-900 Hardware Specifications

 Dimensions

79.0 x 48.0 x 24.0 (mm)

 Bandwidth

EGSM900: TX880-915MHz, RX 925-960MHz

DCS1800: TX 1710-1785MHz, RX 1805-1880MHz

GSM850: TX824-849MHz, RX 869-894MHz

GSM1900: TX1850-1910MHz, RX 1930-1990MHz

 Maximum
 RF Output Power

EGSM900, GSM850: 33 dBm(2W)

GSM1800, GSM1900: 30 dBm(1W)

 Resistance

50Ω

 Transmission Speed

Circuit switched 4.8/9.6 kbps

 Sensitivity

  -159 dBm

 Frequency

L1, 1575.42MHZ

 Channels

20

 Position Accuracy

10 meters CEP without SA

 Speed Accuracy

0.1 meters/second, without SA

 Coordinate System

WGS-84

 Hot Start

< 8 Seconds

 Warm Start

< 38 Seconds

 Cold Start

< 60 Seconds

 Height

18000 meters（60000 feet）max.

 Speed

515 meters / second（1000 knots）max.

 Acceleration

4g max.

 Working Voltage

5 to 24 VDC

 Power Consumption
 in stand-by mode

0.8W

 Power Consumption
 in working mode

1.5~2W

 Housing

Metal

 Operation Temperature

-20°C to +70°C

 Storage Temperature

-30°C to +80°C

 Humidity

0~95%, non-condensing

Gift Box
　

>> Parts List
