GPS-911(M) Mobile Personal Tracking Kit -no more offer


  • High sensitivity GPS: -159 dBm

  • Omni-direction GPS

  • SOS function

  • Geo-fence function

  • Phone conversation

  • Built-in speaker, MIC & battery

  • Configurable transmission interval

  • Sound monitor & personal tracking

  • Compact, portable and good looking plastic housing

  • Quad band (850/900/1800/1900 MHz) GSM, SMS & GPRS

[SMS Track]

An intuitive DIY tracking software for you to track on the map easily in office/ home or on the roads by your own PDA Phone. Neither service nor related contracts from call center are required.

( for OEM request only)

  • GPS Data Logger Function new

When GSM Network is not available, the GPS data will be stored in the memory upto 17500 records. Once the device receives GSM signal again, the logged data will be sent back to server automatically.

  • Support Tow Fixed IP Addresses -only available from GoPass

Through GPRS sending GPS data to 2 fixed IP addresses networked by computers.

  • GEO-fence (Park) Function - guarding vehicle against theft

The tracker will alert you by sending a SMS message to your mobile/PDA, when someone moves the car or the asset without permission over a preset distance. It is recommended to set the geo-fence range over 200 meters.

  • A-GPS Function - supporting indoor positioning

Assisted-GPS is only application for Tele-communication System Suppliers.

  • Bi-Direction Phone Conversation Function

You can have a phone conversation by making phone call to GPS-911, and vice versa. When you get an incoming call, there will be a voice prompt, and then press the “Pick-Up/ Hang-Up” button to start the conversation. You can also dial out to the preset 2 phone numbers.


  • SOS Emergency Help Call Function

When you presses the SOS button, the device will immediately send a SMS short-message to the preset phone number.


  • GPS Position Tracking Function

The report method can be via SMS messages or via GPRS.

  • Sound Monitoring Function

You can monitor the situation inside the vehicle remotely from mobile phone by sending a SMS command to this device without interfering the persons in the car.


  • Other Functions:

    • Send back data based on the preset time internal or based on the driving distance

    • Read the volt data by sending a SMS message

    • Get position data thru phone call

    • Set the timetable to send back data automatically

    • Support Sleep Mode

    • If the speed is slower than defined km/ hour for continuous defined time, the device won't send back data

    • Sound alert when battery is low

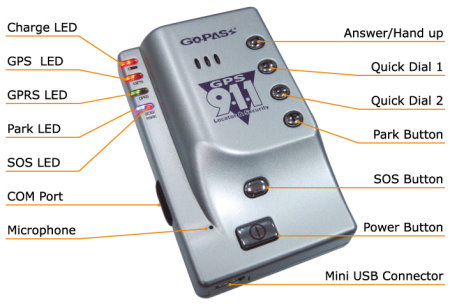

Panel Description

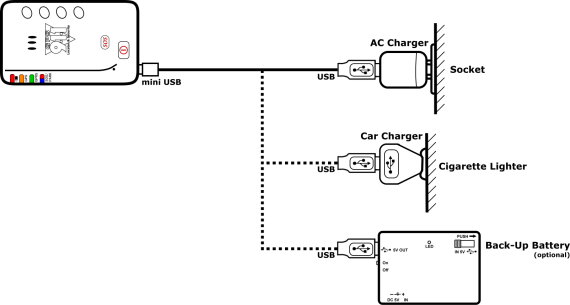

Power Charging

SMS Track

With this intuitive tracking software, you can track easily in office/ home or on the roads by your own PDA Phone. Neither service nor related contracts from call center are required. Thru this tracking software, the GPS data received from the personal tracker will be forwarded to the navigation map installed in your PDA Phone automatically, so that you can see the vehicle position on the map, i/o just the meaningless latitude & longitude data.   >>Learn More

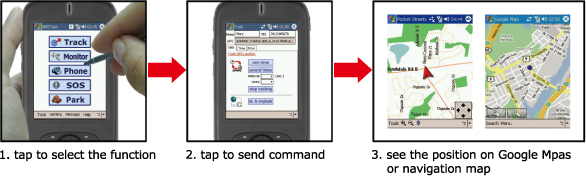

● Easy Step 123:

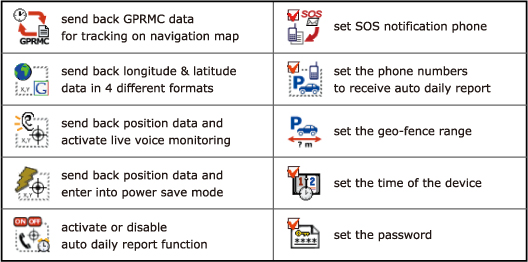

● Key functions of the software:

● System Structure:

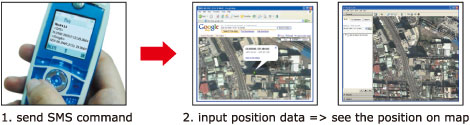

Track the position by mobile phone





GPS-911(M) Hardware Specifications


80 grams (battery included)


79.50 x 47.50 x 25.00 (mm)


EGSM900: TX880-915MHz, RX 925-960MHz

DCS1800: TX 1710-1785MHz, RX 1805-1880MHz

GSM850: TX824-849MHz, RX 869-894MHz

GSM1900: TX1850-1910MHz, RX 1930-1990MHz

 RF Output Power

EGSM900, GSM850: 33 dBm(2W)

GSM1800, GSM1900: 30 dBm(1W)



 Transmission Speed

Circuit switched 4.8/ 9.6 kbps


-159 dBm


L1, 1575.42mhz



 Position Accuracy

10 meters CEP without SA

 Speed Accuracy

0.1 meters/second, without SA

 Coordinate System


 Hot Start

< 6 Seconds average

 Warm Start

< 38 Seconds average

 Cold Start

< 60 Seconds average


Max. 515meters / second1000 knots


6 Buttons: Answer, Quick Dial * 2, Park, SOS, Power


5 LED: Charging, GPS, GSM, Park, SOS


Mini USB PORT for charge and connect to PC.

 Working Voltage

Rechargeable Li-ion battery3.7V 1000mAh ,5 V Input

 Standby Mode

60 hours

 Operating Mode

8 hours



 Operation Temperature

-20°C to +55°C

 Storage Temperature

-30°C to +70°C


0~95%, non-condensing

Gift Box


>> Parts List
