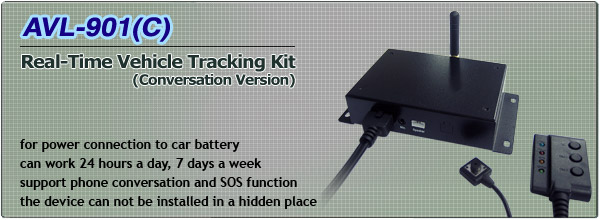

AVL-901C GPS Vehicle Tracker (Conversation Version)


  • High sensitivity GPS: -159 dBm

  • German Quad band (850/900/1800/1900 MHz) GSM, SMS & GPRS

  • Sound monitoring & track your vehicle all the time

  • Geo-fence for car's security & management

  • Report car's position at the preset time interval

  • Control key pad for SOS and phone function

  • Can receive phone calls for bi-direction conversation

  • SOS function to summon help to the exact location/ place

  • Optional external voltage regulator to eliminate power surge

  • Good for both DIY and call center based tracking


A multifunctional PC base tracking software for you to set up a Fleet Management System at your office or home for tracking over Maps from 1~500 vehicles.

  • - German Quadband (850/900/1800/1900 MHz) GSM,GPRS
    - High sensitivity GPS antenna,strong receptivity
    - Geo-fence for enter,timeout & exit alarms
    - FOTA (Firmware updating via GPRS)
    - Report car's position at the preset time interval
    - Data Log in blind area and auto upload .
    - Support Two fixed IP Addresses
    - Real-time tracking and history trace replay
    - Sound monitoring & support Sleep Mode
    - Send back data based on timetable,driving distance
    - Read the volt data by sending SMS message
    - Sms to get Google maps locate of smart phone
    - Google,Bing,Openstreet 3 maps
    - Bi-Direction Phone Conversation
    - SOS and burglar alarm
    - CE,FCC,NCC Approval, 3 Years Warranty

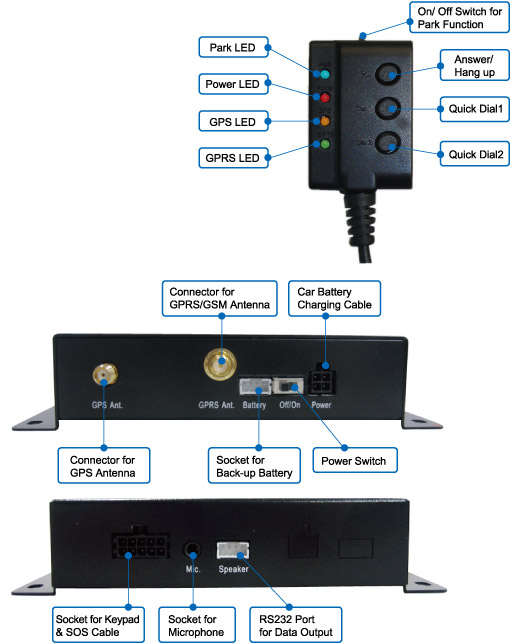

Panel Description

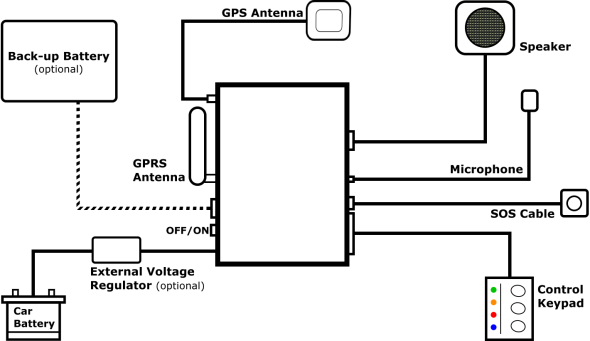

Power Charging


A tracking software for you to track over Maps real-time by your own PC; no need to pay for the maps or service charges. It can also keep history records for you to replay afterwards. As to reports, it can provide you mileage/ routes/ idle/ over-speed/ detailed activity and fleet summary reports for management purpose. Besides, GooLocate software supports "Remote Data Server" function. The data received by server can be forwarded to any PC links to the internet for data sharing. It enables you to set up a mini-control center by yourself.   >>Learn More


Other free tracking softwares included

 real-time track over
 navigation map in PC
  track the position by
  mobile phone
  track the position by
  PDA phone



AVL-901(C) Hardware Specifications


320 grams


135mm x 76mm x 25mm (AVL unit)


EGSM900: TX880-915MHz, RX 925-960MHz

DCS1800: TX 1710-1785MHz, RX 1805-1880MHz

GSM850: TX824-849MHz, RX 869-894MHz

GSM1900: TX1850-1910MHz, RX 1930-1990MHz

Max. RF Output Power

EGSM900, GSM850: 33 dBm(2W)

GSM1800, GSM1900: 30 dBm(1W)

Transmission Speed

Circuit switched 4.8/9.6 kbps




-159 dBm


L1, 1575.42MHZ


20 channels

Position Accuracy

10 meters CEP, w/o SA

Speed Accuracy

0.1 meter/ second, w/o SA

Coordinate System


Hot Start

< 8 Seconds

Warm Start

< 38 Seconds

Cold Start

< 60 Seconds


18000 meters60000 feetmax.


515meters / second1000 knotsmax.


4g max.

Working Voltage

5 to 24 VDC



Power Consumption

in stand-by mode


Power Consumption

in working mode


Operation Temperature

-20°C to +70°C

Storage Temperature

-30°C to +80°C


0~95%, non-condensing

>> Parts List



GPS-911(R) GPS-911(M) AVL-900(R) AVL-900(M) AVL-901(D) AVL-921
