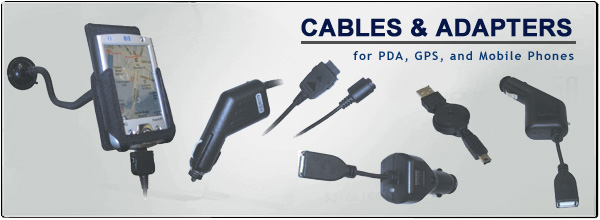

GPS cable and PDA cable for GPS applications

Back-Up Battery

KN-190  Back-Up Battery

  • Supply backup power for MP3, MP4, Cell Phone, PDA, and Digital Camera. Also charge their batteries at the same time.

  • Selected connector-set for various devices

  • Enough capacity to charge two batteries back to back without recharge

  • Recharged via AC input - LED charging indicator

  • High quality rechargeable lithium battery

  • Compact, lightweight

  • Convenient backup for heavy-duty power users of mobile devices

  • Input: AC 100V~250V

  • Output: 5.3V, 400mA

  • Capacity: 2400mAh

  • Size: 90*5*20 mm

  • Weight: ~125g

KN-189 Back-Up Battery

  • Supply backup power for MP3, MP4, Cell Phone, PDA, and Digital Camera. Also charge their batteries at the same time.

  • LED charging indicator

  • High quality rechargeable lithium battery

  • Compact, lightweight

  • Without built-in AC adapter to recharge the battery

  • Input: 5V, 500mAh

  • Output: 5V

  • Capacity: 2400mAh

  • Size: 12*50*70 mm

  • Weight: ~75g

GPS Antenna

External GPS Antenna with MMCX connector

  • Dielectric patch antenna, low drop-out, linear regulator

  • Power Consumption at 3V: typical/ Max = 9 to 15mA

  • Power Input Voltage: Min/ Max = 2.5 to 5.5Vdc

  • Frequency Range: 1576.443 - 1574.397Mhz

  • Cable Length: 3 meters; weight: 92 grams

  • Dimensions: 40.5 * 38.0 * 12.3 mm

  • Retail Packing: blister package




Car Charger

Universal Car DC Power Adapter for Notebook

This model is an universal auto and airplane adapter, use for laptop, switching-mode DC to DC power supply, operation at input DC12V, output DC 12V~24V, output current 4 Amp max, with many protection functions , such as output over voltage protection, output Short Circuit protection.

  • DC car charger to re-charge your Notebook

  • Input voltage range : DC12V

Input power : 100W(max)

Input current :10A(max)

  • Output voltage : DC12V/15V/16V18V/19V/20V/24V

Output power : 80W(max)

Output current :4A(max)

  • USB Output: 5V 2A

  • Efficiency :88%(Type)

  • Available for most notebook computers

  • With 8 different connectors.



PDA/ Mobiles Car Chargers

  • DC car charger to re-charge your PDA

  • input voltage: 11-28V DC, output voltage 5V DC

  • available for most of the very popular PDA & mobiles brands/ models



GPS Data Cable with Car Charger

GPS Data Connectivity Cable with Car Charger

With this cable, you can connect your PDA to the GPS receiver for full GPS navigation services. One end of the cable is a PS/2 plug for the connection of GPS Receiver; the other end is the specific PDA plug. Except served as GPS Data Connectivity Cable, the car charger provides continuous power to both the PDA and the GPS Receiver.

As the different PDA has its specific connectors, please advise the matching PDA models you need, when inquire or order. We have the data cable for most of the PDA models and SmartPhones.



GPS Serial to USB Converter Cable

GPS Receiver PS/2 to USB Converter Cable

With this converter cable, you can connect your Notebook PC to the PS/2 GPS Receiver for full GPS navigation services. One end of the cable is a PS/2 plug for the connection of GPS Receiver with PS/2 connector; the other end is a USB plug for the connection of Notebook PC and other devices with USB port. It offers an easy and economic way for you to get full GPS navigation services, without the need to pay extra money to buy a PDA.
