GPS Personal Tracker - GPS-900u

  OBD interface GPS TRACKER GOT08

aaaaaaaa



This Tracker provides peace of mind by showing you with your mobile phone or PC the location of your targets via SMS or GPRS.

TRACKER has the following features

  • Tracking via SMS or GPRS
  • Current location report
  • Tracking by time interval
  • Two-way conversation
  • SOS alert
  • Geo-fencing control
  • Low battery alert
  • Speeding alert
  • Four buttons for making phone call and/or sending message
  • Removable and rechargeable internal battery
  • Built-in speaker and microphone
  • Alert when Track enter/exits GPS blind area

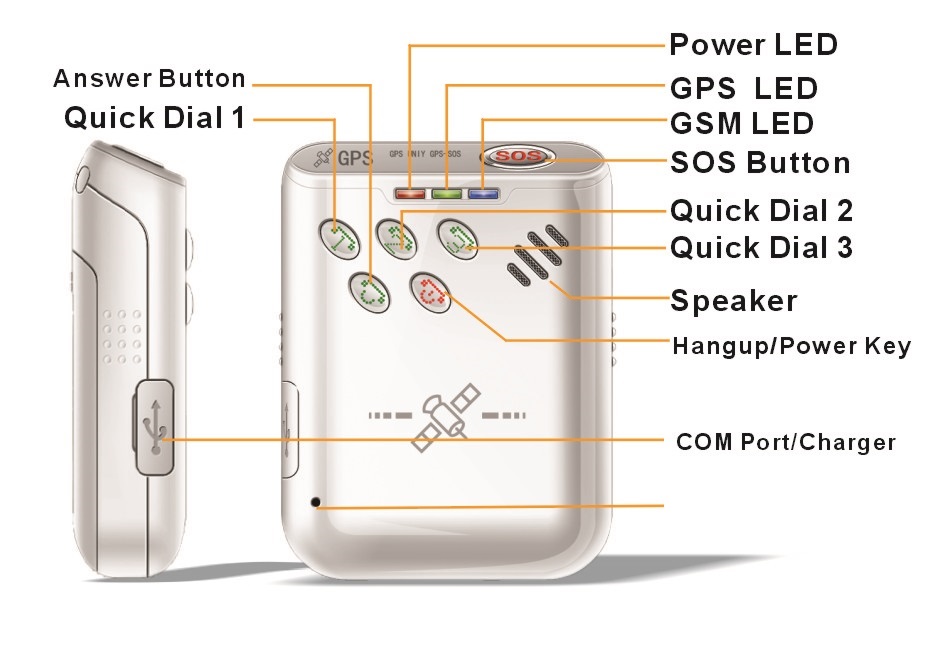

Track Parameters& Panel Description


Item

Specification

Platform

MTK6223+MTK3326

Size

53.6×43.8×16.1(mm)

Charging Voltage

DC 5V/500mA (Micro USB port)

Internal Battery

Rechargeable and removable 830 mAh battery (3.7V)

Operating temperature

-20° to 55° C

Humidity

5% to 95% Non-condensing

GSM module

GSM 900/1800/1900Mhz

GPS Chipset

latest GPS (AGPS)

GPS Sensitivity

-158Db

GPS Frequency

L1, 1575.42 MHz

C/A Code

1.023 MHz chip rate

Channels

20 channel all-in-view tracking

Position Accuracy

10 meters, 2D RMS

Velocity Accuracy

0.1 m/s

Time Accuracy

1 us synchronized to GPS time

Default datum

WGS-84

Reacquisition

0.1 sec., average

Hot start

1 sec., average

Warm start

38 sec., average

Cold start

42 sec., average

Altitude Limit

18,000 meters (60,000 feet) max.

Velocity Limit

515 meters/second (1000 knots) max.

Acceleration Limit

Less than 4g

Jerk Limit

20 m/sec

Work time

60 hours in sleep mode and 10 hours in normal mode

Call waiting time

48 hours (GPS signal depends on the conditions of site and network)

Communication time

8 hours

LED

3 LED indicators showing power, GPS, GSM status and other operation status.
